If you operate vacuum trucks, you know the pump is the heart of the system. Without a reliable truck vacuum pump, your operation grinds to a halt. But not all pumps are created equal. Noise restrictions, fuel costs, and maintenance headaches make choosing the right pump more critical than ever.
In this article, we’ll explore what truck vacuum pumps do, the challenges operators face, and how the Roots Tri-Nado™ truck vacuum pump solves these problems with innovative design.
-min.jpeg?format=pjpeg&width=100&quality=10)

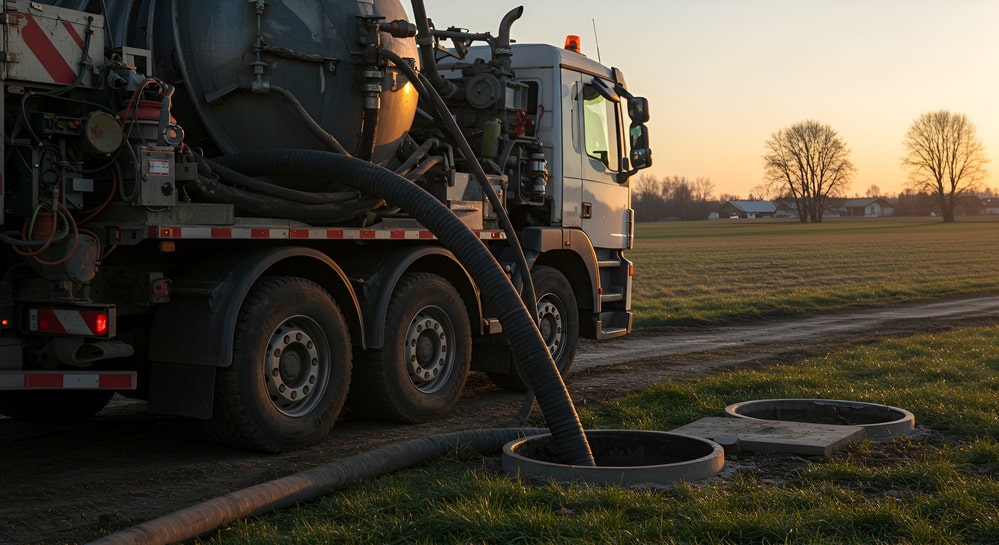

A truck vacuum pump creates negative pressure inside a tank, allowing it to suck up liquids, sludge, or dry materials. This technology is essential for a wide range of industries, including industrial cleaning, septic and wastewater services, oil and gas operations, environmental cleanup, and material handling processes similar to those used in pneumatic conveying systems.
Most truck vacuum pumps use positive displacement technology, which means they move a fixed volume of air with each rotation. This process creates a vacuum inside the tank, enabling efficient material handling. Without this critical component, vacuum trucks simply cannot perform their job.

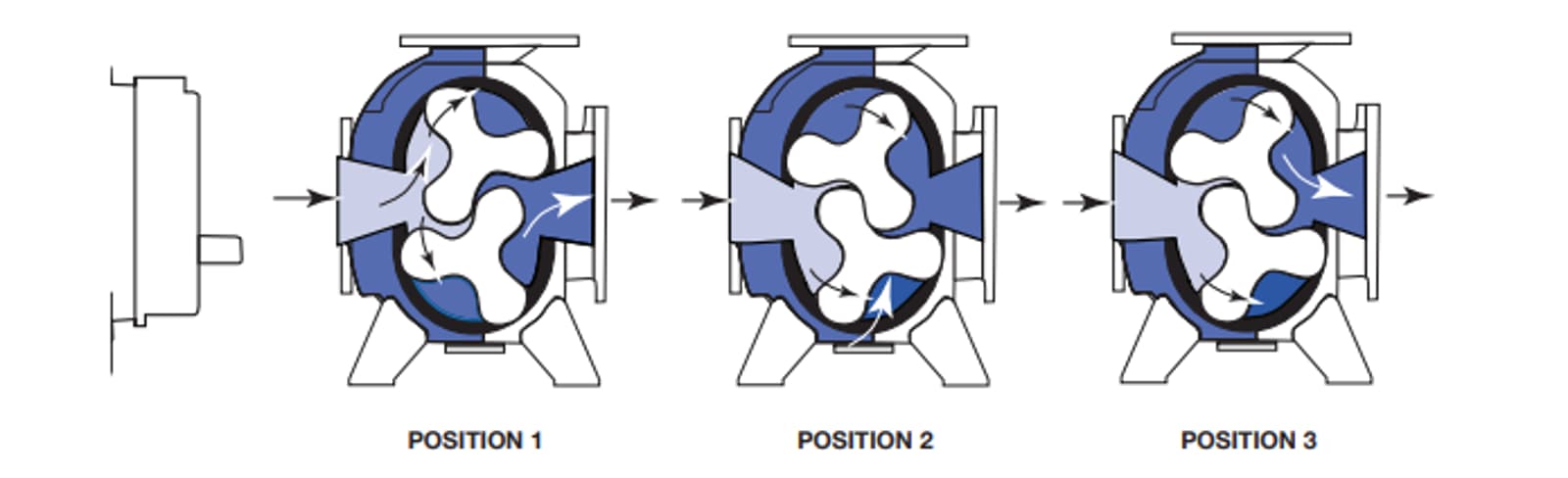

Principle of Operations
Shaded blue areas indicate air pressure variations from intake to atmosphere discharge
Position 1: Incoming air is trapped between the impellers and the case, producing a vacuum in the application system. Simultaneously, air is discharged (right) from the vacuum blower.
Position 2: As the impeller passes the jet plenum, atmospheric air flows into the space between the impeller and the case. This cools the trapped air, aids impeller movement and reduces shock and power loss.
Position 3: The trapped air is then moved to the discharge flange (right). Backflow is reduced, resulting in lower discharge noise relative to conventional rotary vacuum blowers.
If you're running a vacuum truck, you've probably dealt with these 4 common headaches.:

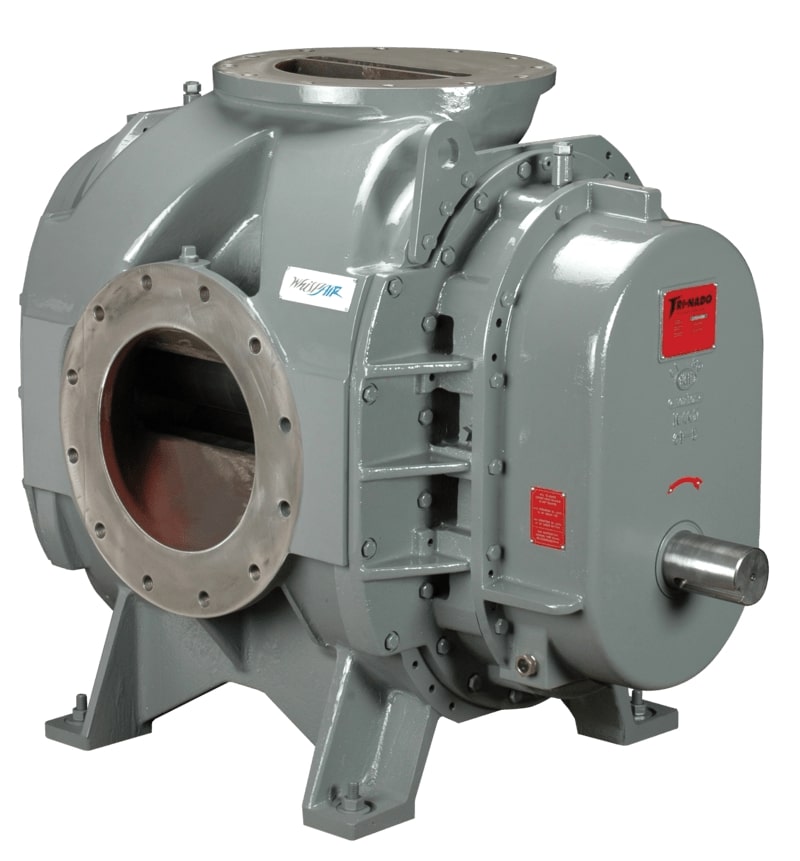

Roots has been the original name in blower and vacuum technology for over 170 years, and the Roots Tri-Nado™ truck vacuum pump is engineered to tackle these challenges head‑on. For operators evaluating high‑performance solutions, Roots also offers advanced truck vacuum blower options such as the Roots RAS‑DVJ blower and Roots RGS‑DVJ blower, both designed for demanding vacuum applications.
Unlike traditional pumps, the Tri-Nado™ is engineered for significantly quieter operation, helping you stay compliant with evolving noise regulations and maintain positive relationships with customers and surrounding communities. Its integrated manifold reduces overall system weight, increasing payload capacity and improving fuel economy.
Efficiency is another area where the Tri-Nado shines. Advanced engineering allows it to deliver high performance with lower horsepower requirements, which means less strain on your engine and significant fuel savings over time. And when it comes to reliability, Roots has a reputation that speaks for itself. Built by the brand that started it all, the Tri-Nado offers legendary durability and long service life, reducing downtime and maintenance costs.
-min.jpg?format=pjpeg&width=100&quality=10)
When you choose Roots, you’re investing in more than just a pump — you’re choosing proven engineering backed by decades of innovation in positive displacement technology. Our global support network helps keep your fleet operating efficiently and reliably.
To get the most value from your equipment over its full service life, we also recommend following blower protection best practices, which can help prevent unexpected failures and protect your operational investment.
Don’t let noise, weight, and inefficiency slow you down. Upgrade to the Roots Tri‑Nado™ truck vacuum pump and experience the difference.
Next: Learn how to choose the right blower for your application and ensure your truck is equipped for long‑term performance.
