- Detachable steel mounting feet
- Rigid one-piece cast iron casing
- Anti-friction bearings
- Splash lubricated spur timing gears and drive end bearings.
- Connections in standard pipe sizes
- Lower noise and pressure pulsation for longer bearing life

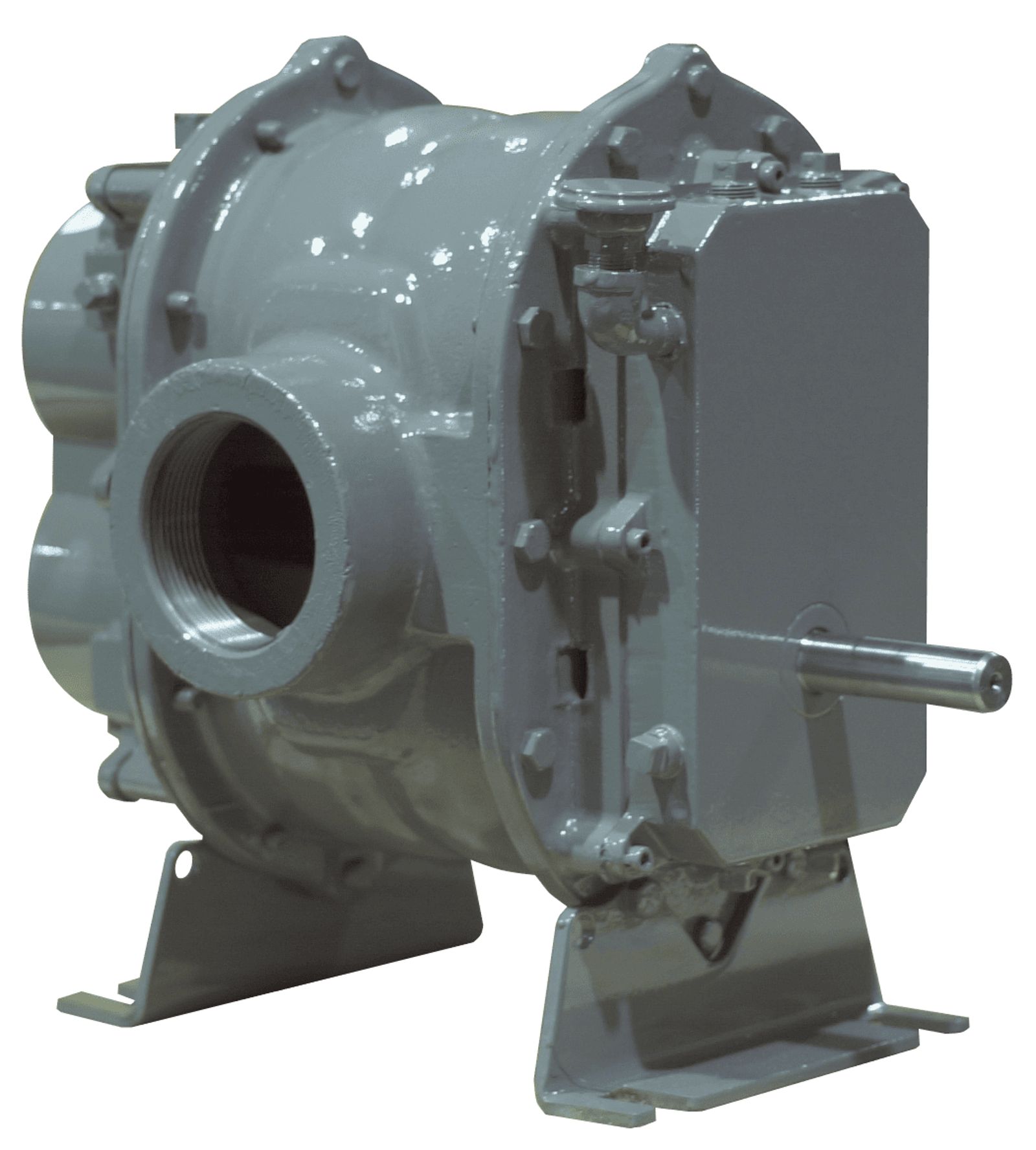

Heavy-duty, versatile, bi lobe rotary blowers with reduced noise.
The ROOTS® Universal RAI™-J DSL (Dual Splash Lubricated) heavy-duty, versatile, rotary blowers are designed with detachable, rugged steel mounting feet that permit easy in-field adaptability to vertical or horizontal installation requirements. - Units can be easily adapted to any of four drive shaft positions: right, left, bottom, or top. Model features dual splash lube for cooler operations and greater reliability as well as WHISPAIR™ technology to reduce noise and pressure pulsations emitted from the blower.
- Pressures to 15 psig (1034 mbar)
- Vacuums to 16” Hg (539 mbar)
- Flows to 630 cfm (1070 m3/hr)
- Available with metric drive shaft and pipe connections
The URAI-J DSL combines dual splash lubrication with reduced noise and pressure pulsations for reliable operation in demanding industrial applications.
- Versatile Mounting Options: Detachable mounting feet offer versatility for four drive shaft positions: right, left, bottom, or top.
- Durable Construction: Compact and sturdy design ensures continuous service when operated within speed and pressure ratings.
- Robust Components: Basic model features durable construction with cast iron casing, alloy steel gears, and cast iron impellers.
- Enhanced Bearing Strength: Oversized antifriction bearings and cylindrical roller bearing to withstand V-belt pull.
- Efficient Lubrication System: The URAI DSL blower utilizes splash oil lubrication on both gear and drive ends, enhancing gear and bearing life.
- Improved Lubrication System: ROOTS® exclusive “figure-eight” gearbox design enhances oil distribution for extended gear and bearing life.
- Reduced Vibration: Smoother operation due to reduced pressure pulsations.
- Noise Reduction: WHISPAIR technology controls backflow of air, reducing noise levels.
- Lower Air Pulsation: WHISPAIR blowers operate with up to 40% less pressure pulsation than conventional blowers, enhancing efficiency and performance.
Frame Size | Speed RPM | 1 PSI CFM | 1 PSI BHP | 6 PSI CFM | 6 PSI BHP | 7 PSI CFM | 7 PSI BHP | 10 PSI CFM | 10 PSI BHP | 12 PSI CFM | 12 PSI BHP | 13 PSI CFM | 13 PSI BHP | Max Vacuum "Hg | Vacuum CFM | Vacuum BHP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
33 | 1160 | 55 | 0.3 | 31 | 1.9 | 28 | 2.2 | - | - | - | - | - | - | 10 | 27 | 1.5 |
33 | 2800 | 156 | 0.9 | 132 | 4.6 | 129 | 5.4 | 120 | 7.7 | 116 | 9.2 | - | - | 14 | 113 | 5.2 |
33 | 3600 | 205 | 1.2 | 181 | 6.1 | 178 | 7.0 | 170 | 9.9 | 165 | 11.9 | - | - | 15 | 159 | 7.3 |
36 | 1160 | 95 | 0.5 | 61 | 3.1 | 57 | 3.6 | - | - | - | - | - | - | 10 | 55 | 2.5 |
36 | 2800 | 262 | 1.5 | 229 | 7.7 | 224 | 8.9 | - | - | - | - | - | - | 12 | 213 | 7.5 |
36 | 3600 | 344 | 2.1 | 310 | 10.1 | 306 | 11.7 | - | - | - | - | - | - | 15 | 278 | 12.1 |
45 | 860 | 79 | 0.5 | 42 | 2.7 | 37 | 3.2 | - | - | - | - | - | - | 8 | 46 | 1.8 |
45 | 1760 | 188 | 1.0 | 151 | 5.7 | 146 | 6.6 | 133 | 9.4 | - | - | - | - | 12 | 134 | 5.5 |
45 | 3600 | 410 | 2.7 | 374 | 12.2 | 369 | 14.1 | 356 | 19.8 | - | - | - | - | 16 | 332 | 15.4 |
47 | 860 | 106 | 0.6 | 59 | 3.6 | 53 | 4.2 | - | - | - | - | - | - | 8 | 63 | 2.4 |
47 | 1760 | 249 | 1.3 | 203 | 7.5 | 196 | 8.7 | - | - | - | - | - | - | 12 | 181 | 7.3 |
47 | 3600 | 542 | 3.5 | 496 | 16.1 | 490 | 18.6 | - | - | - | - | - | - | 15 | 452 | 19.1 |
56 | 700 | 123 | 0.7 | 78 | 4.1 | 72 | 4.7 | - | - | - | - | - | - | 10 | 70 | 3.3 |
56 | 1760 | 358 | 2.0 | 312 | 10.5 | 306 | 12.2 | 290 | 17.3 | 280 | 20.6 | 276 | 22.3 | 14 | 276 | 11.8 |
56 | 2850 | 598 | 4.0 | 553 | 17.7 | 547 | 20.5 | 531 | 28.7 | 521 | 34.2 | 517.0 | 37.0 | 16 | 501 | 22.4 |
